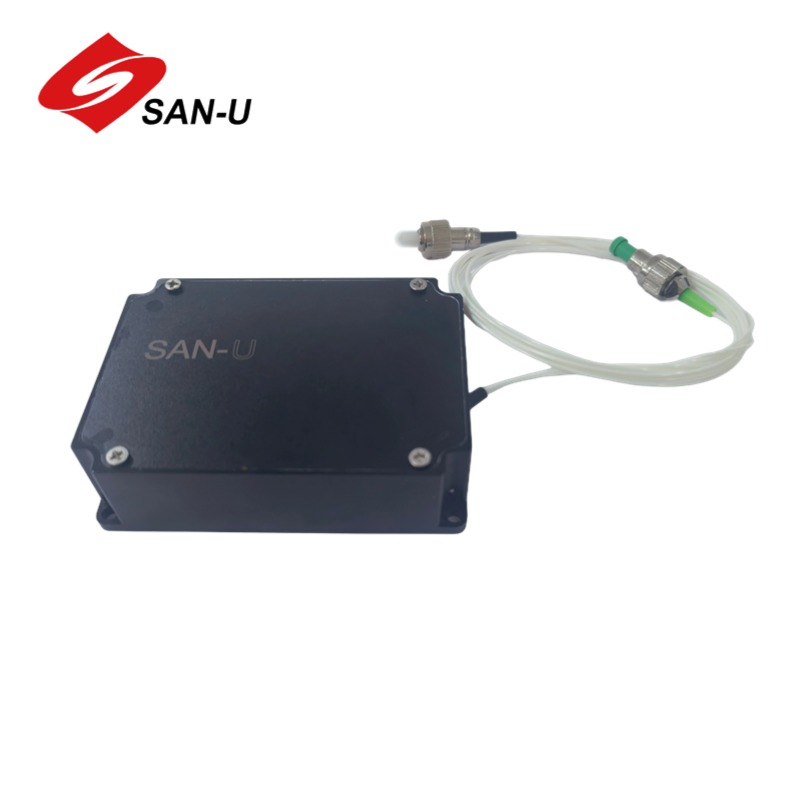

1550nm Pulsed fiber laser light source module Laser radar diode lidar diode

1550nm Pulsed fiber laser light source module Laser radar diode lidar diode

This product is a human-eye-safe 1550nm pulsed fiber laser source developed by SAN-U Optronics. It features high peak power, high electro-optic efficiency, low ASE and nonlinear effect noise, and a wide operating temperature range. The product is suitable for use in lidar systems and various sensors.

Wavelength :
1550nm

Inquiry now

Product Details

Features:

Specifications:

bsolute Maximum Ratings

參數	單位	最小值	典型值	最大值	說明
工作方式		脈沖
中心波長	nm	1547	1550	1553	可定制CWL 1535±3nm
脈寬(FWHM)	ns	1		10	可調
重復頻率	MHz	0.1	0.5	2	可調
平均功率	W	0.95	1	2	@3ns, 500kHz, 25C
峰值功率	kW		1.5①	2.0②
偏振態	NA	隨機
觸發模式	NA	外觸發
脈沖出光延遲抖動	ps		80	100
電功耗	W			13	輸出1W
工作電壓	V	9	12	13
工作溫度(@殼體)	℃	-40		85
存儲溫度	℃	-40		105
封裝尺寸	mm	50x70x19
重量	g			100
光輸出方式		FC/APC頭或光纖準直輸出
輸出光纖長度	m	定制			900T套管
電接口型號		MOLEX 505567-1281

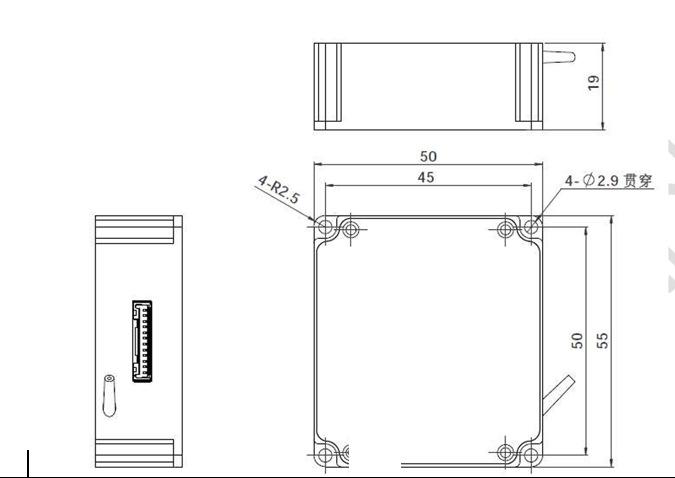

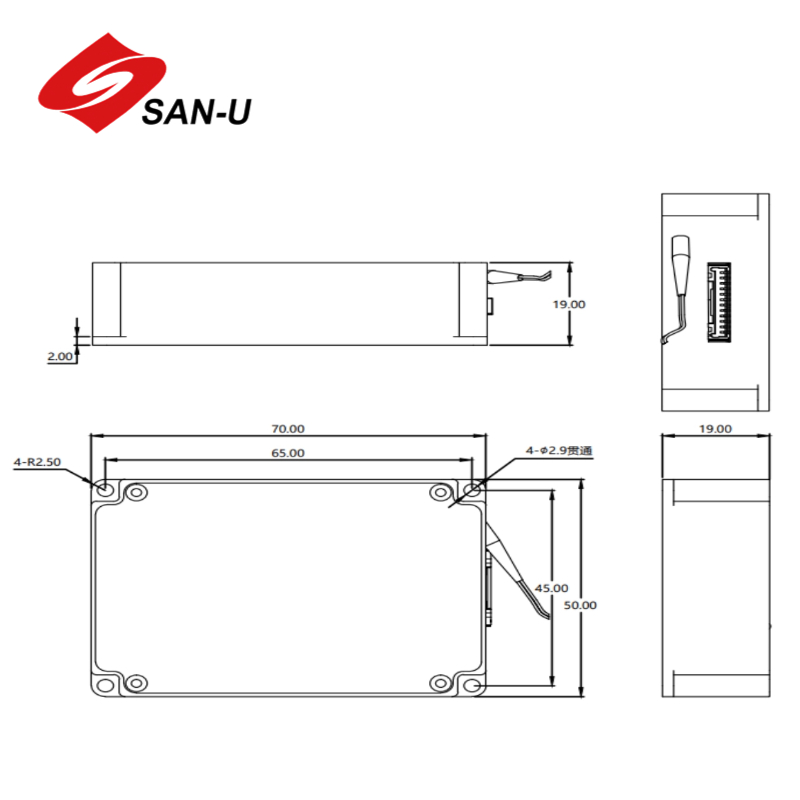

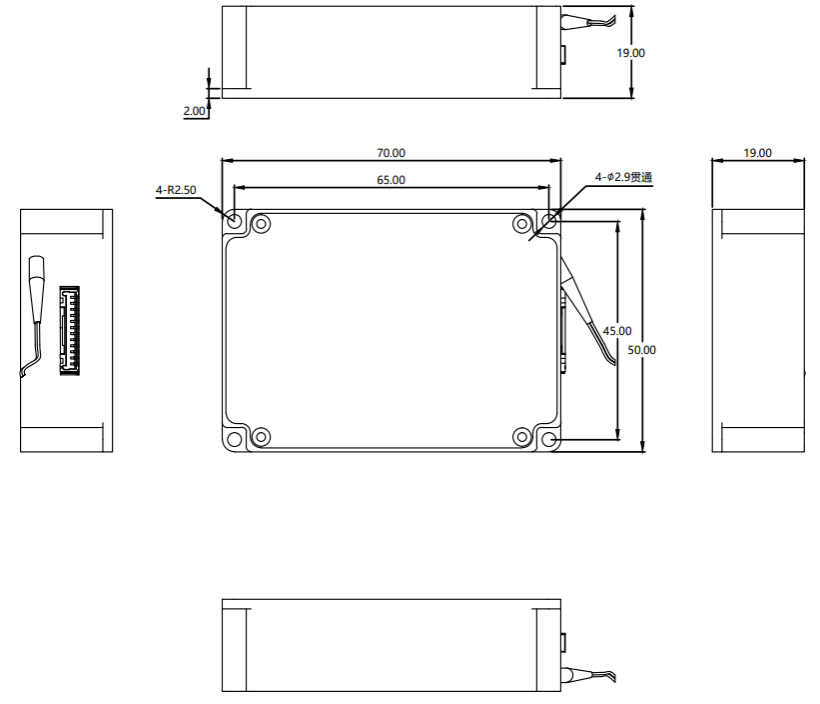

Mechanical Dimensions:
